Atkar Group’s 3D Visualiser will help you find the right panel for your next project. Select your preferences to see a full-size panel in 3D, plus get access to other important product details.  Note: Different finishes and substrates can affect Group Ratings – for more advice see Fire ratings Tab below.

Clear
  • Pattern customisation

    Light cut out patterns can be customised to suit your visual requirements

  • Stylish and decorative

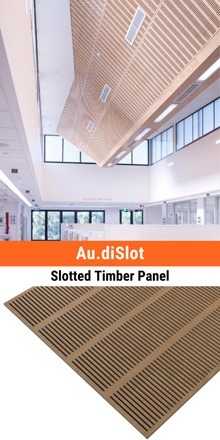

    Au.diSlot offers a standard range of pre-finished timber grain and decorative surfaces, which can be coordinated with other timber building elements or finishes

  • Curved panels

    Plywood panels can be designed to fit your curved surfaces

Use the Au.diSlot 3D Panel Visualiser and the Product details below
to help you find the best panel for your project.

Please contact Atkar Group on 1300 33 38 33 for more advice.

Click the + sign below to view

Support

Product Information

Standard Range of profiles and finishes:

  • Atkar Group offer an extensive range of standard profiles, substrates, finishes and panel sizes.
  • All panels selected from our standard range are made to your exact project measurements, with shop drawings provided for sign off prior to manufacturing.
  • As part of our standard range, you can also select your preferred panel thickness, edge type, joint type and margin.

Use the 3D Product Visualiser above to see what panel variations are available and to see panel information such as group rating, fixing options and more.

Customisation options:

Atkar Group regularly customise panels in a variety of ways, but the most common variations are:

  • Custom finishes
  • Custom colours
  • Custom panel shape
  • Custom profiles and patterns



For more details on any of our Standard or Customised panels, please contact us or call our team direct on 1300 333 833.





As a custom made product, Au.diSlot has numerous options within the range.

Different substrates, finishes, patterns and open area percentages can have an affect on the final group rating. You can use the 3D Product Visualiser above to select your panel type and to see panel information such as group ratings.

Below highlights what Group Rating options are available for Au.diSlot. Please contact our Architectural Team to discuss your product preferences.

Atkar have the following Group Rating options for Au.diSlot

Group 1 – Contact us on 1300 333 833 to discuss
Group 2 – Fire Certificates available
Group 3 – Fire Certificates available

CLICK HERE to receive a copy of one of our Fire Certificates or to discuss your group rating requirements.



Useful Tools:

Specification Writer – have the product specification wording sent to your inbox instantly
Group Rating Calculator – see what group rating is required for your project

Pattern & Substrate Options

Au.diSlot is available in 20 standard perforation patterns or you can customise your own pattern. There are also various substrates available

Use the Au.di.Slot 3D Product Visualiser above to view standard panel patterns . You will also be able to select what substrates, finishes and colours are available, along with relevant panel information such as group rating, fixing options and more for that exact panel variation.




Finish Options

The the following finish options are available. Use the Au.di.Slot 3D Product Visualiser above to view finish colours available with each substrate.

Click the link for more information on each finish type.



Panel Sizes

Our panels are manufactured to suit your exact project size requirements, however it is necessary to select a base panel size. The table outlines the available sizes available for each substrate.

Custom panel sizes and shapes are also available, please contact Atkar Group to discuss.

Substrates Available Panel Sizes (mm) Thickness Finish Options
MDF – Standard 600 x 600
1200 x 600
1200 x 1200
1800 x 900
1800 x 1200
2400 x 600
2400 x 900
2400 x 1200
2700 x 600
2700 x 900
2700 x 1200
3000 x 600
3000 x 900
3000 x 1200
3600 x 600
3600 x 900
3600 x 1200
9, 12, 16, 18 Inluxe Colour
Inluxe Image
Inluxe Laminate
Inluxe Veneer
Raw
MDF – Moisture Resistant 12, 16, 18
MDF – Fire Retardant 600 x 600
1200 x 600
1200 x 1200
1800 x 900
1800 x 1200
2400 x 600
2400 x 900
2400 x 1200
2700 x 600
2700 x 900
2700 x 1200
3000 x 600
3000 x 900
3000 x 1200
12, 16, 18
MDF Black – Standard 600 x 600
1200 x 600
1200 x 1200
1800 x 900
1800 x 1200
2400 x 600
2400 x 900
2400 x 1200
12, 16, 18 Inluxe Image
Inluxe Laminate
Inluxe Veneer
Raw
MDF Black – Fire Retardant 12, 16, 18
Plywood – Hoop Pine 600 x 600
1200 x 600
1200 x 1200
1800 x 900
1800 x 1200
2400 x 600
2400 x 900
2400 x 1200
2700 x 600
2700 x 900
2700 x 1200
9, 12, 16, 19 Raw + Clear Coat
Plywood – Birch 600 x 600
1200 x 600
1200 x 1200
1800 x 900
1800 x 1200
2400 x 600
2400 x 900
2400 x 1200
12, 15, 18, 24
Plywood – Goldcore 9, 12, 15, 18, 22
OSB 600 x 600
1200 x 600
1200 x 1200
1800 x 900
1800 x 1200
2400 x 600
2400 x 900
2400 x 1200
12, 15, 18 Raw + Clear Coat

*Table details subject to change.




Edge Type

There are three panel edge types available for Au.diSlot – straight, bevel and round edge.




Joint Type

The following joint type options are available. Our standard express joint width is 10mm – however other widths are possible on request.
Butt Joint is not available with a square edge.




Panel Margins

Panel margins are the space (in mm) between the edge of the panel and the centre of the first perforated slot. See below for reference

The standard margin for Au.diSlot is 20mm. Selected custom margins are available on request.

Fixing Options

Atkar Group have developed a number of proprietary concealed fixing systems that are designed especially for Au.diSlot. These systems are integrated and factory fitted to the panel to ensure that the end-product is installed easily, safely, and to the highest standard of quality and finish.

Face Fix

The most cost effective option is to face fix Au.diSlot using the supplied screws and colour-matched screw decals. These decals offer a very seamless finish. Ask us to see an example.

Concealed Fixing Systems

Atkar Group have developed a range of concealed fixing systems (our Au.diMount Fixing Range) that allows for the secret fixing of our timber substrate panels, providing a seamless and integrated look. Au.diMount can be used in either a suspended ceiling configuration using standard furring channel system components, or directly fixed to the wall or ceiling sub-structure, allowing simple installation.

There are a number of considerations required when selecting the most suitable concealed system for your project. It is best to finalise all details including the panel application, orientation and joint type, along with any other installation conditions and budgets.

The table* below provides a basic overview of each of the concealed systems suitable for Au.diSlot. Please contact Atkar Group to discuss your specific requirements to ensure the most suitable system is selected.

  Au.diMount PS3 Au.diMount XJ1 Au.diMount BJ2
Application Ceiling X
Wall X X X
Panel Orientation Landscape X X X
Portrait X X X
Joint Type Expressed Joint X X
Butt Joint X X X
Other Benefits Split batten installation X X
Demountable X X
Matching Infill Strips X X



*Table is subject to change without notice.

Panel Cut Outs

Small panel cut outs for light fittings, fire alarms or similar are possible with Au.diSlot.

Cut outs can be done on site however it is recommended that this be done by Atkar Group during manufacturing as this will ensure that the cut outs do not compromise the appearance or acoustic performance of the panels.

Cut out size and location needs to be provided during the shop drawing stage.




Access Panels

Access panels and other ceiling penetrations can be easily integrated into Au.diSlot. These processes should be carried out on-site during the installation of the panels.

Standard access panel sizes are 450 x 450mm & 600 x 600mm.



Click below to download the Au.diSlot Technical Data Sheet & Install Guide:

Au.diSlot Technical Data Sheet



Warranty

Our commitment to you and the quality of your installation doesn’t stop at the point of purchase.  In addition to our industry leading technical and installation support, all Atkar products are covered by our 15 year quality guarantee.  Contact us for a full copy of our warranty.




Maintenance

Atkar Infinity panel systems are a combination of particleboard or plywood substrates with either a genuine timber veneer, polyurethane paint finish, or our Inluxe™ Image laminate applied to the face and or/edges of the panels.

Cleaning

Remove any marks or dust with a damp cloth and dry thoroughly. Stubborn stains or grease may be removed with a gentle cleaner and a soft cloth.

Do not use abrasive cleaning chemicals or strong solvents. Adhesive tape should never be applied to the surface of the panels during maintenance as this may damage the face finish.
